Check-It-Gauge

Uses

Accurately measure intricate details like ribs, slots, engraving, texture, and counter bores
Align plates parallel and flush
Check the height of standing cores and bosses

Benefits

Reaches over the burrs created by the machining process
Easily finds the high and low points of an irregular surface
Readily takes measurements above and below a reference plane

Features

Indicator rotates for easy viewing
Choice of indicator types available - Dial or Digital
Provides ability to change tip styles
Base is made from hardened tool steel

Check-It-Gauge

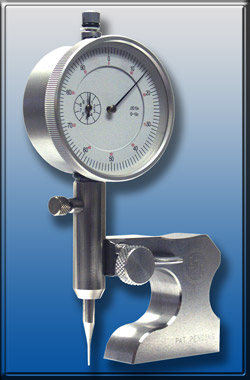

Check-It-Gauge is designed to be a versatile measuring tool. It can be used as a height gauge, depth gauge or step gauge just by making a quick and easy adjustment. It is available with either a dial or digital indicator. Adding to its versatility, the indicator tip style can be changed, enabling the measurement of intricate details such as ribs, slots, engraving and grooves. For this reason it is an invaluable tool used by the mold manufacturing industry. Inspectors, machinists, engravers and many other trades can also benefit from its use.

Shown here with a .040" Dia. Tip

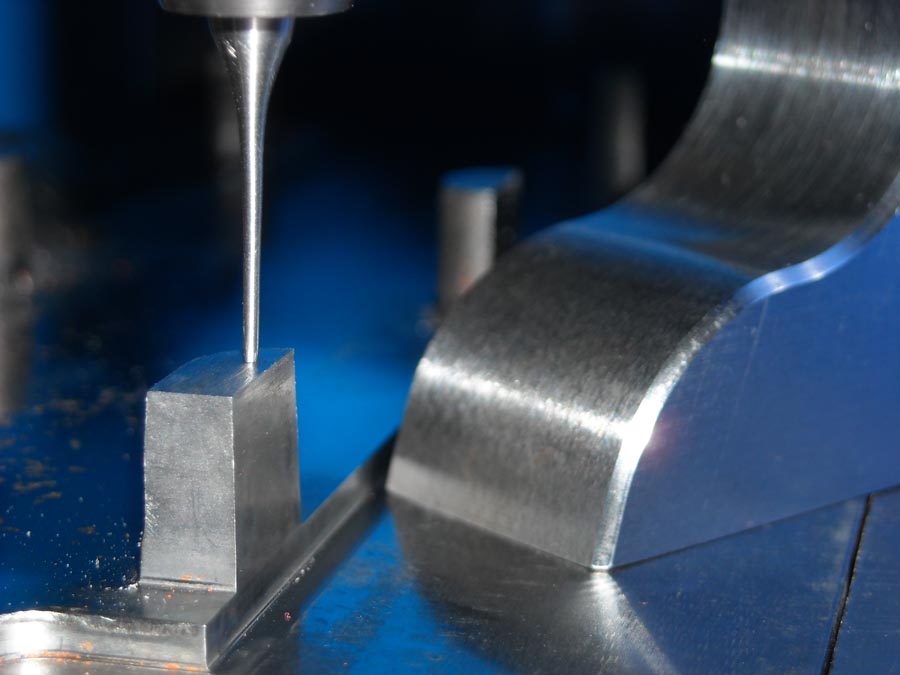

	Height Gauge: Measure the height above a reference plane such as between the parting line of a mold and a standing core or boss.

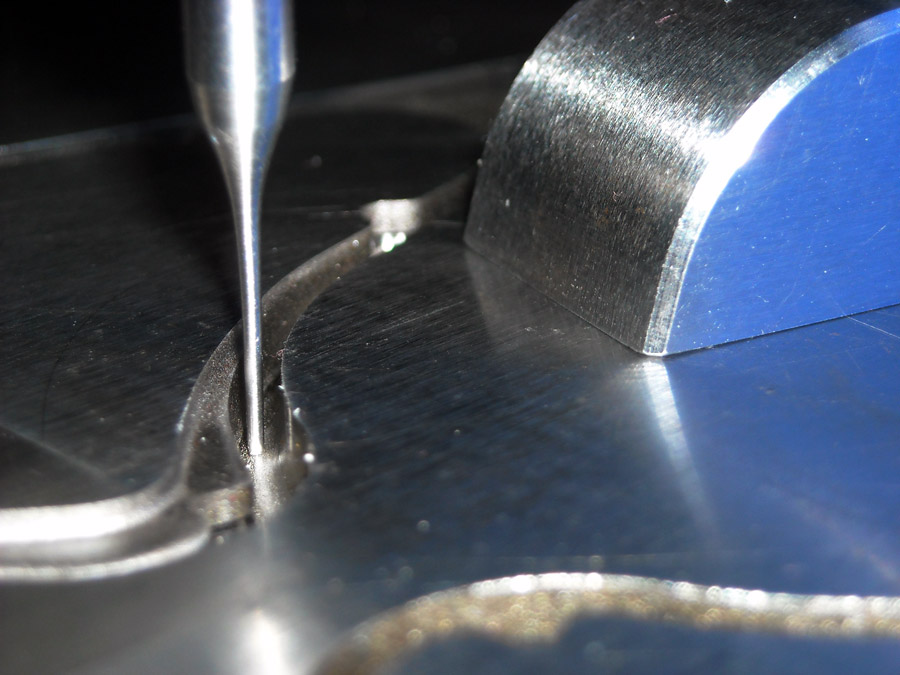

	Depth Gauge: Measure the depth of a cavity, counter bore or rib detail below the reference plane.

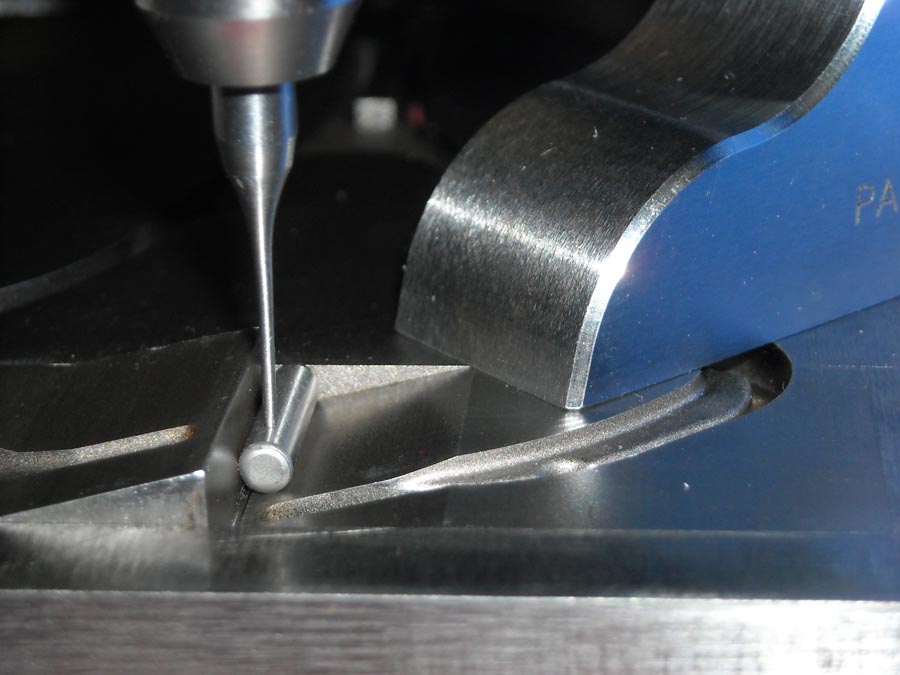

(Click images to enlarge)	Step Gauge: Zero out at the lower reference point and measure the step distance between points.
	See More Uses

Mold Makers • Tool & Die Makers • Machinists • Inspectors • Welders • Mechanics • Engravers
